A garage workshop isn’t just a place to tinker. It’s where creativity meets functionality.
It’s the spot where I’ve spent countless weekends fixing things around the house, building custom furniture, or experimenting with a new project.
The way your garage is laid out can completely change how enjoyable and efficient those projects feel.
A cluttered, disorganized space can turn even the simplest task into a headache, while a well-planned layout makes everything flow and saves you time.
The good news is you don’t need a huge garage to have a dream workspace.
Even a small one-car garage can be transformed into a functional, professional-quality workshop with a bit of planning and smart storage solutions.
From wall-mounted shelves to mobile workstations, these 15 garage workshop layout ideas will help you get the most out of your space, making every DIY project smoother and more satisfying.

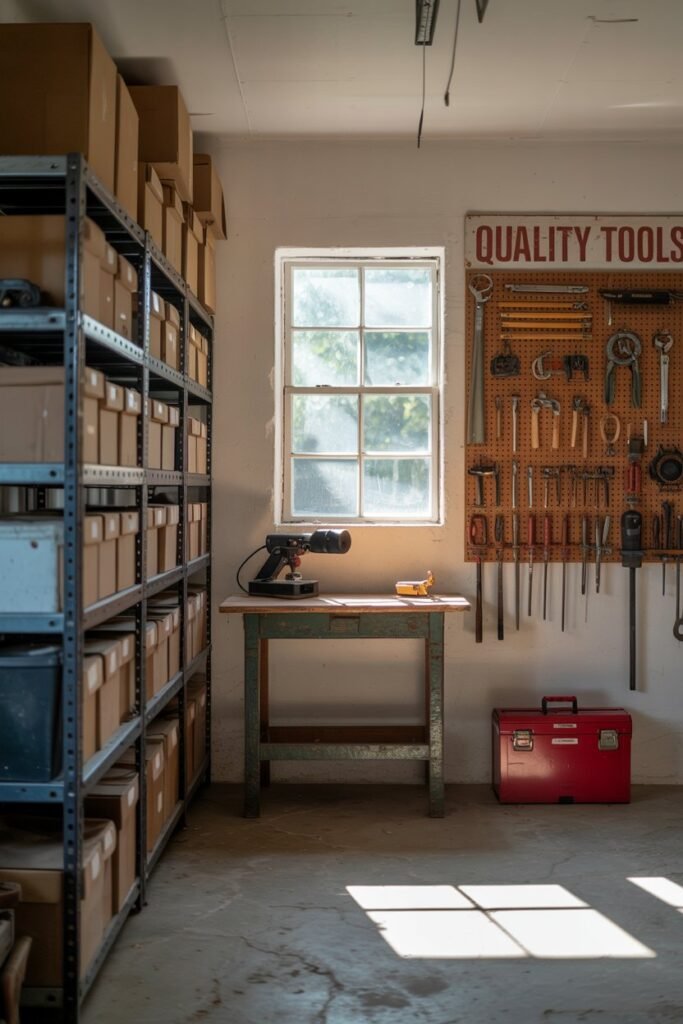

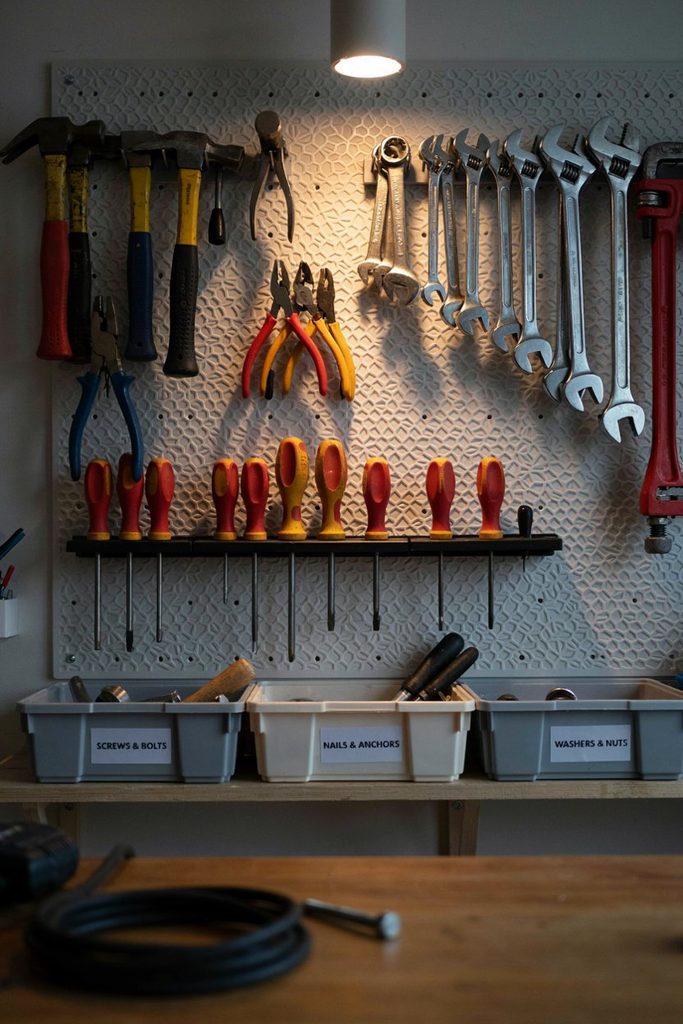

1. Wall-Mounted Tool Storage Layout
Freeing up floor space has always been one of my top priorities in my garage workshop.
Wall-mounted tool storage is hands down one of the most effective ways to do it.
By using pegboards, hooks, and shelving, I can keep all my tools visible, easy to reach, and neatly organized while leaving plenty of room for larger equipment on the floor.
This setup is perfect for smaller garages where every inch matters.
I like to group my tools by type and add labeled bins or magnetic strips for nails, screws, and other small parts. It makes finding what I need during a project fast and stress-free.
Products to Consider
Pegboards with hooks
Magnetic tool strips
Wall-mounted shelving units

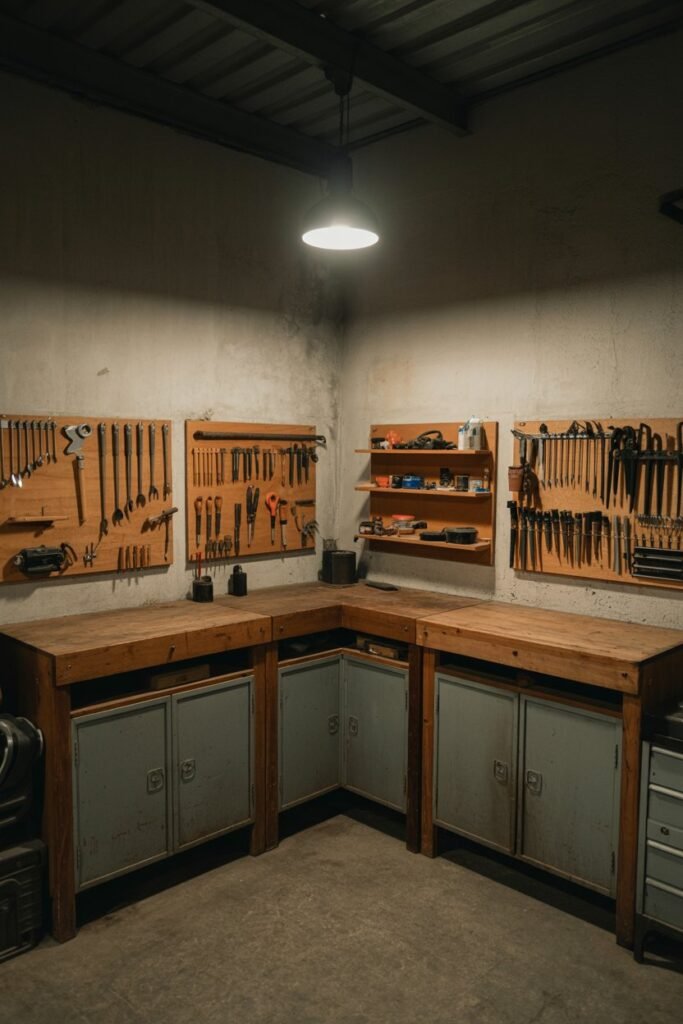

2. U-Shaped Workbench Layout
I’ve found that a U-shaped workbench layout is a game-changer for projects that have multiple stages like cutting, assembling, and finishing.
By arranging benches along three walls, I can wrap my workspace around me and keep all my tools and materials within easy reach.
This layout works best if you have a larger garage or if you want a permanent workshop setup.
I like to add under-bench cabinets to increase storage without taking up extra floor space. It keeps everything organized and my workspace feeling open.
Products to Consider
Modular workbenches
Rolling storage drawers
Under-bench cabinets

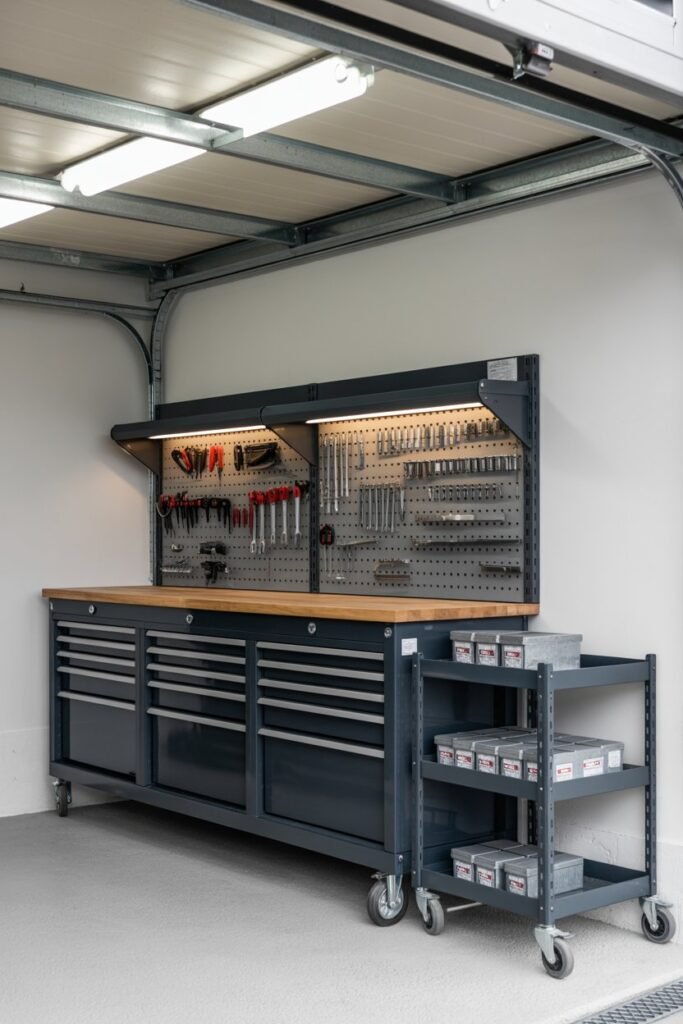

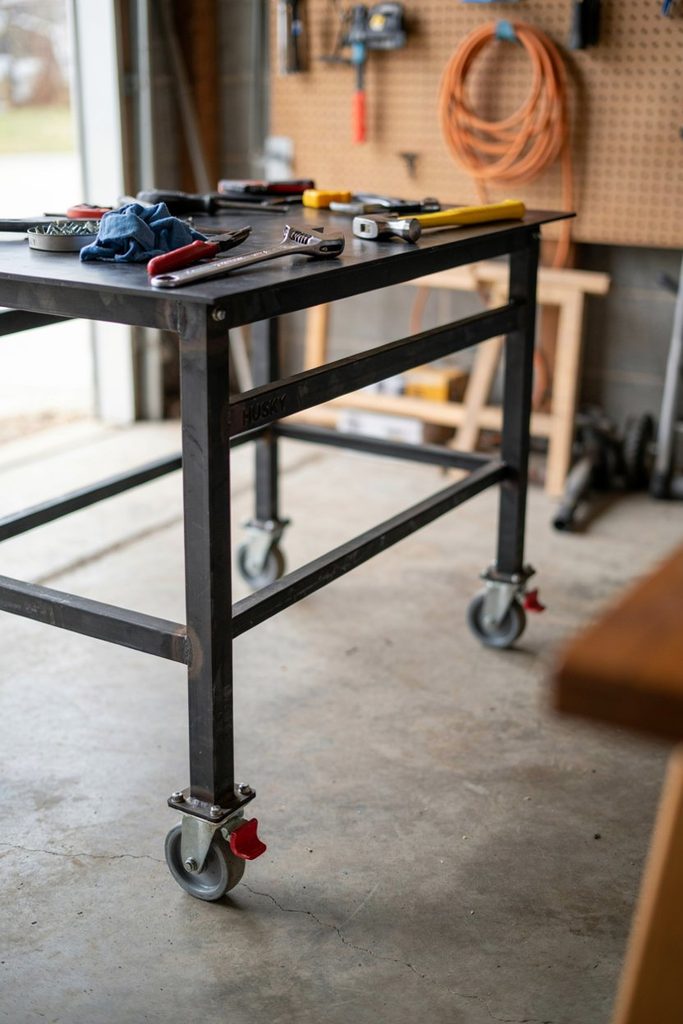

3. Rolling Workbench Layout
Not every garage workshop can stay set up all the time, especially if you also need to park your car.
I’ve found a rolling workbench to be a lifesaver because I can move my main workstation wherever I need it and then tuck it against the wall when I’m done.
Pairing a rolling bench with mobile tool carts creates a flexible setup that adapts to any project or space.
This approach is especially handy in single-car garages or for renters who can’t commit to permanent installations.
Products to Consider
Heavy-duty rolling workbenches
Mobile tool carts
Locking caster wheels
4. Dual-Purpose Workshop and Parking Layout
Many homeowners need their garage to serve two purposes: parking and projects.
I’ve seen how a dual-purpose layout makes life easier by using fold-down workbenches and wall-mounted storage to maximize flexibility.
When I’m working on a project, everything I need is within reach, and when I’m done, it all folds neatly away.
This setup means you don’t have to choose between your car and your workshop.
It’s one of the most practical layouts for everyday garages, especially if you want a tidy, functional space without compromise.
Products to Consider
Fold-down wall workbenches
Collapsible storage racks
Ceiling-mounted bike or gear storage

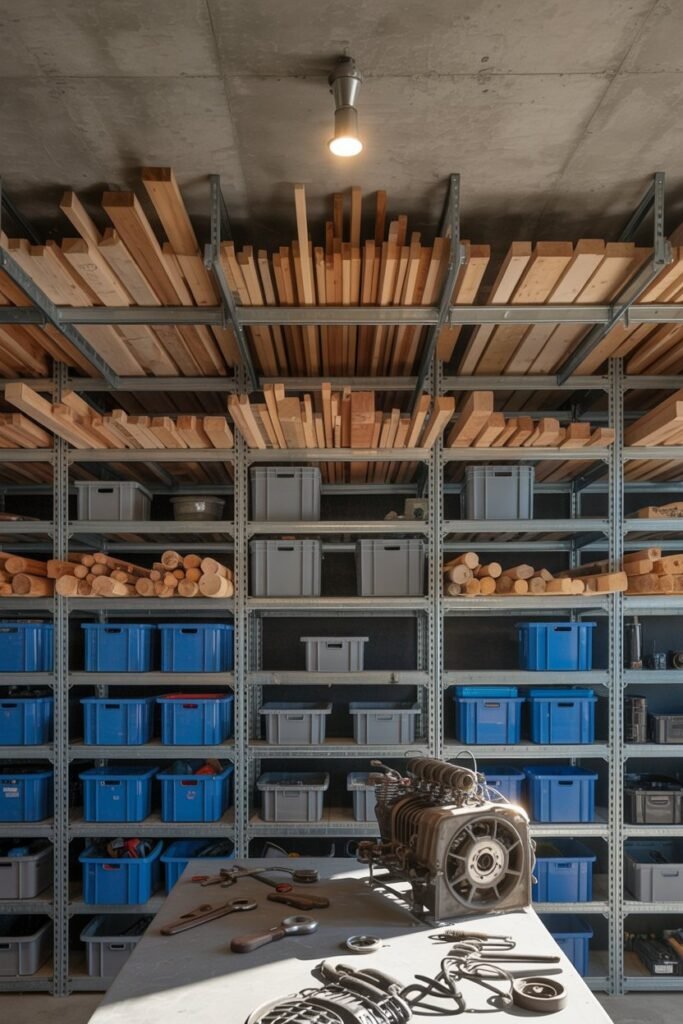

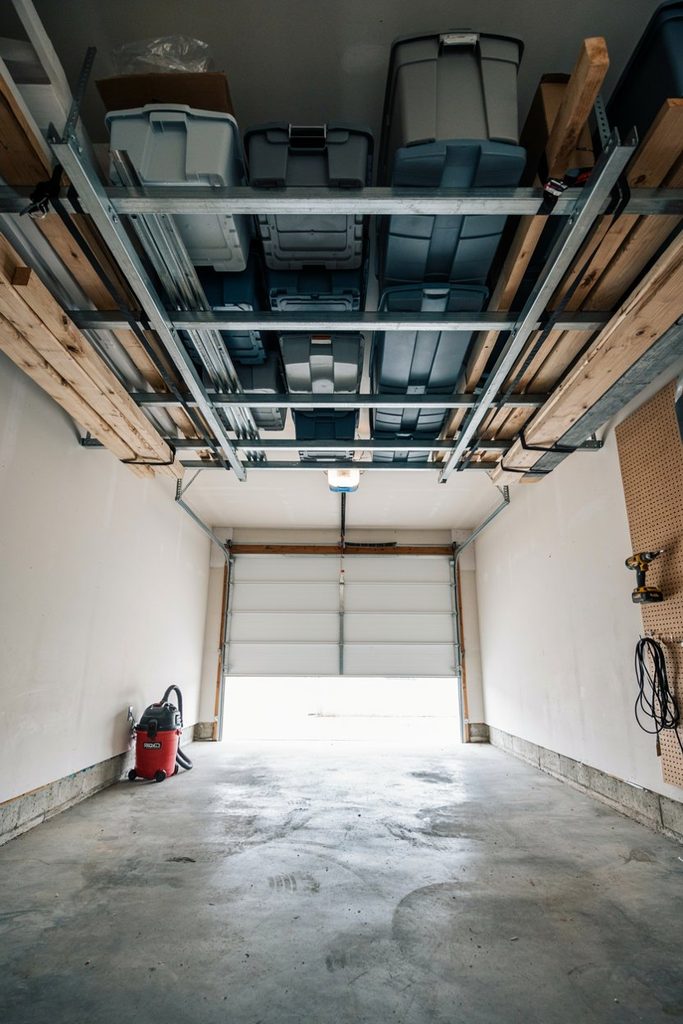

5. Overhead Storage Layout
The ceiling is one of the most underused spaces in a garage. I’ve learned that installing overhead racks or pulley systems can completely transform a workspace.
Seasonal items, bulky tools, or even lumber can be stored up high, leaving your floor space clear for actual projects.
This setup is perfect for small garages because it gives you vertical storage without crowding your work area.
Just make sure frequently used tools stay at eye level, while items you rarely need can go up top.
Products to Consider
Overhead storage racks
Ceiling pulley systems
Wall-mounted ladder hooks

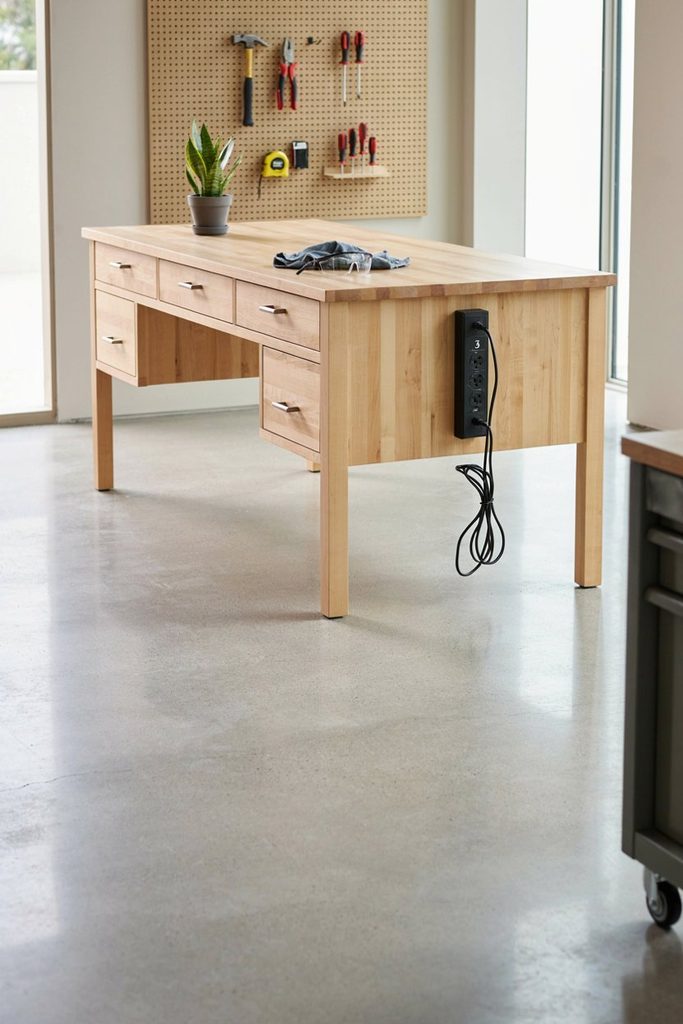

6. Central Island Layout
A central island workbench transforms the center of your garage into a dedicated project zone.
I love how having open space all around the island makes moving and accessing tools effortless, especially when tackling larger projects.
Built-in storage under the island keeps everything organized and within reach, turning it into both a prep station and a tool hub.
I also recommend placing power outlets nearby so you can plug in drills, saws, or sanders without stretching cords across the garage.
This setup makes even complex projects feel manageable and professional.
Products to Consider
Heavy-duty central workbenches
Modular storage drawers
Power strip workbench mounts

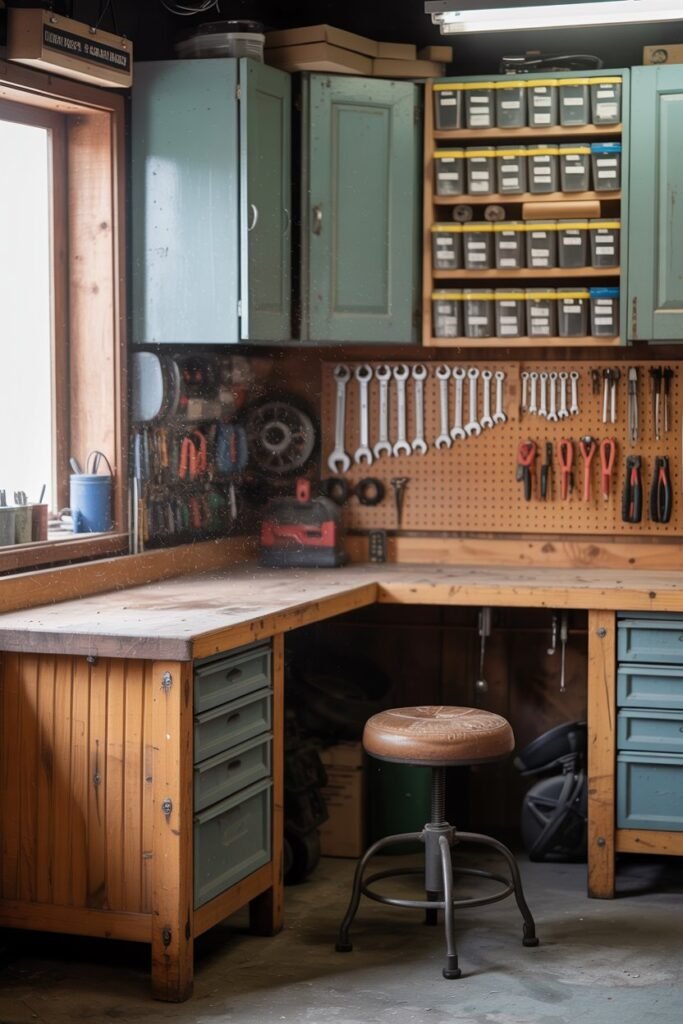

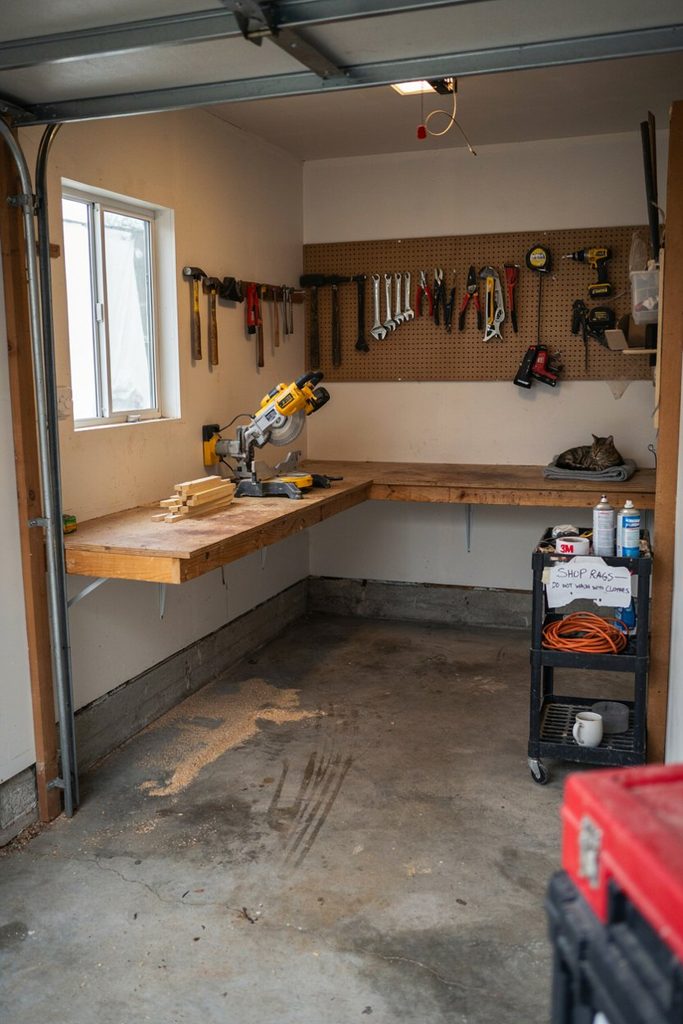

7. L-Shaped Layout
For medium-sized garages, an L-shaped layout is a game-changer.
I’ve found it provides long stretches of counter space while leaving one side open for movement or parking, which makes the garage feel functional without feeling crowded.
This setup is perfect for woodworking, car projects, or any DIY task where you need plenty of bench space.
Adding upper cabinets or wall-mounted racks gives extra storage for tools and supplies, keeping everything organized and accessible.
It’s one of my favorite layouts for balancing workspace with flexibility.
Products to Consider
L-shaped modular benches
Wall-mounted cabinets
Under-cabinet LED lights
8. Compact One-Wall Layout
When space is extremely limited, a one-wall workshop layout can be a lifesaver.
I’ve used this setup in a friend’s single-car garage, and it keeps everything accessible without feeling cramped.
By lining all tools, benches, and storage against a single wall, the rest of the garage stays open for parking or seasonal storage.
The secret to making it work is vertical organization. Tall shelving units, wall-mounted racks, and a fold-down bench help maximize every inch of usable space.
It’s a simple but highly effective solution for small garages or apartments where every square foot counts.
Products to Consider
Tall garage shelving units
Compact wall-mounted workbenches
Pegboard storage panels

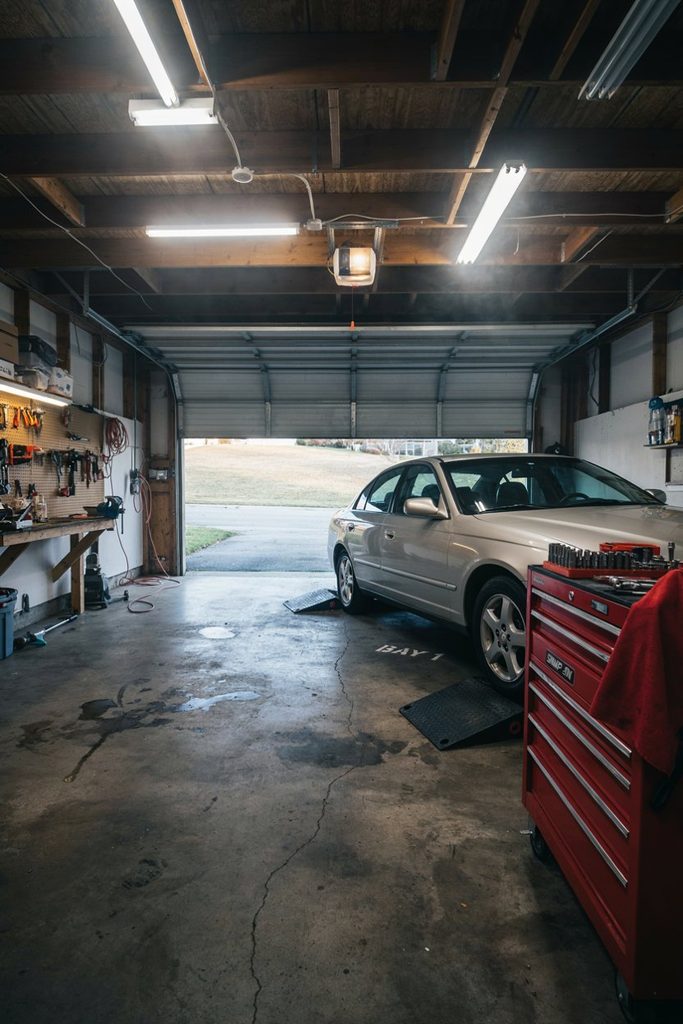

9. Dedicated Automotive Layout
For car enthusiasts, a garage workshop should be designed around auto repair and maintenance.
I’ve spent weekends helping a friend set up his car station, and having a layout that prioritizes vehicles makes a huge difference.
This setup often includes a lift or ramps, rolling tool chests, and bright, focused lighting over the main work area.
A separate workbench along one wall acts as a station for smaller repairs or part assembly, keeping the floor clear for the car itself.
With everything organized, you can work efficiently and safely without constantly moving tools or parts.
Products to Consider
Rolling mechanic tool chests
Hydraulic car lifts or ramps
High-intensity LED shop lights
10. Garden and DIY Combo Layout
Not every garage workshop is about woodworking or car repairs.
I’ve set up a garage for a friend who loves gardening and DIY crafts, and creating zones made a huge difference.
By dividing the space — one area for gardening tools and potting, another for small repairs or craft projects — you get the best of both worlds.
This layout works especially well for families who want a single garage to support multiple hobbies while keeping everything organized and easy to access.
Products to Consider
Potting benches
Multipurpose storage bins
Adjustable shelving units
11. Mobile Tool Cart Layout
If your garage workshop switches between projects every week, mobile tool carts can be a game-changer.
I remember setting up a friend’s small garage where we moved tools from woodworking to car repair stations, and having rolling carts made everything so much easier.
You can simply roll the tools to where you need them, and at the end of the day, everything goes back neatly into the cart.
This layout is perfect for small spaces or for anyone who likes a flexible, adaptable workshop.
Products to Consider
Mechanic tool carts
Lockable rolling cabinets
Slim utility carts
12. Natural Light Layout
Lighting is one of the most underrated parts of a garage workshop.
I like to set up my main workbench under the windows whenever possible—natural light makes detailed work like sanding or wiring so much easier on the eyes.
When it gets dark, task lighting completes the setup, giving you bright, even illumination without relying on harsh overhead lights.
This approach keeps your workspace energy-efficient and comfortable, no matter the time of day.
Products to Consider
Adjustable workbench lamps
LED strip lighting
Daylight-style shop lights

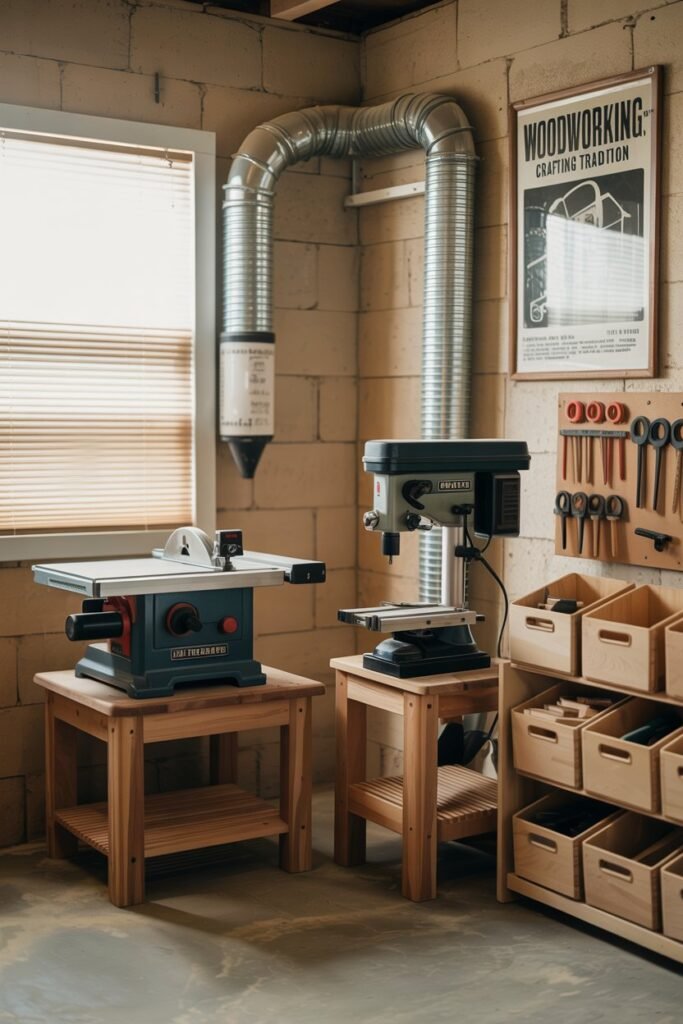

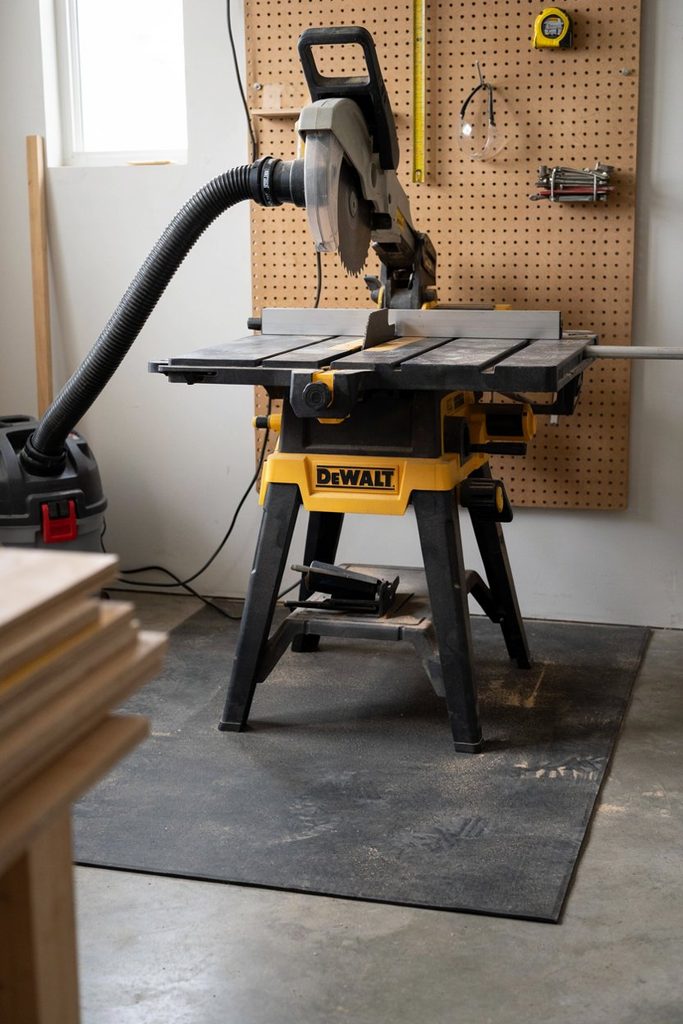

13. Power Tool Station Layout
If you love woodworking or tackling bigger DIY projects, it helps to design a garage layout that centers around your power tools.
I like to group stationary tools—saws, drill presses, sanders—in a single zone and keep a dust collection system nearby.
This setup keeps the noisy, dusty work contained and makes the rest of the garage easier to use for other projects or storage. It’s a game-changer for keeping both your space and your sanity in check.
Products to Consider
Stationary power tool stands
Dust collection systems
Anti-fatigue mats
14. Minimalist Layout
Not every garage workshop has to be filled with tools. A minimalist layout focuses on the essentials — one sturdy workbench, essential hand tools, and smart storage solutions.
This setup is perfect for homeowners who want a functional space without clutter.
Keeping it simple creates a workshop that feels open and organized while still allowing you to tackle everyday projects efficiently.
Products to Consider
Foldable benches
Compact toolboxes
Wall-mounted organizers
15. Professional-Grade Layout
For serious hobbyists or semi-professionals, a professional-grade layout is the ultimate setup.
It includes dedicated zones for woodworking, mechanics, or metalwork, along with ample storage, powerful lighting, and convenient access to outlets.
This design requires more investment but delivers a workshop that feels like a commercial space while still being at home.
Products to Consider
Modular workbench systems
Industrial shop lighting
Climate control units
Conclusion
Creating the perfect garage workshop is all about balancing function, space, and your personal workflow.
Whether you’re a weekend DIYer, a car enthusiast, or a full-on hobbyist, the right layout transforms your garage from a cluttered storage area into a productive and enjoyable workspace.
From wall-mounted storage and rolling workbenches to professional-grade setups, there’s a solution for every garage size and budget.
The key is to plan thoughtfully, maximize vertical space, and design zones that match the projects you actually do.
With the right layout and a few smart products, your garage can become a space where projects get done efficiently, creativity flows freely, and you actually enjoy spending time. Invest a little thought upfront, and your workshop will pay dividends for years to come.
